Control Manual
Number of Axes: 2

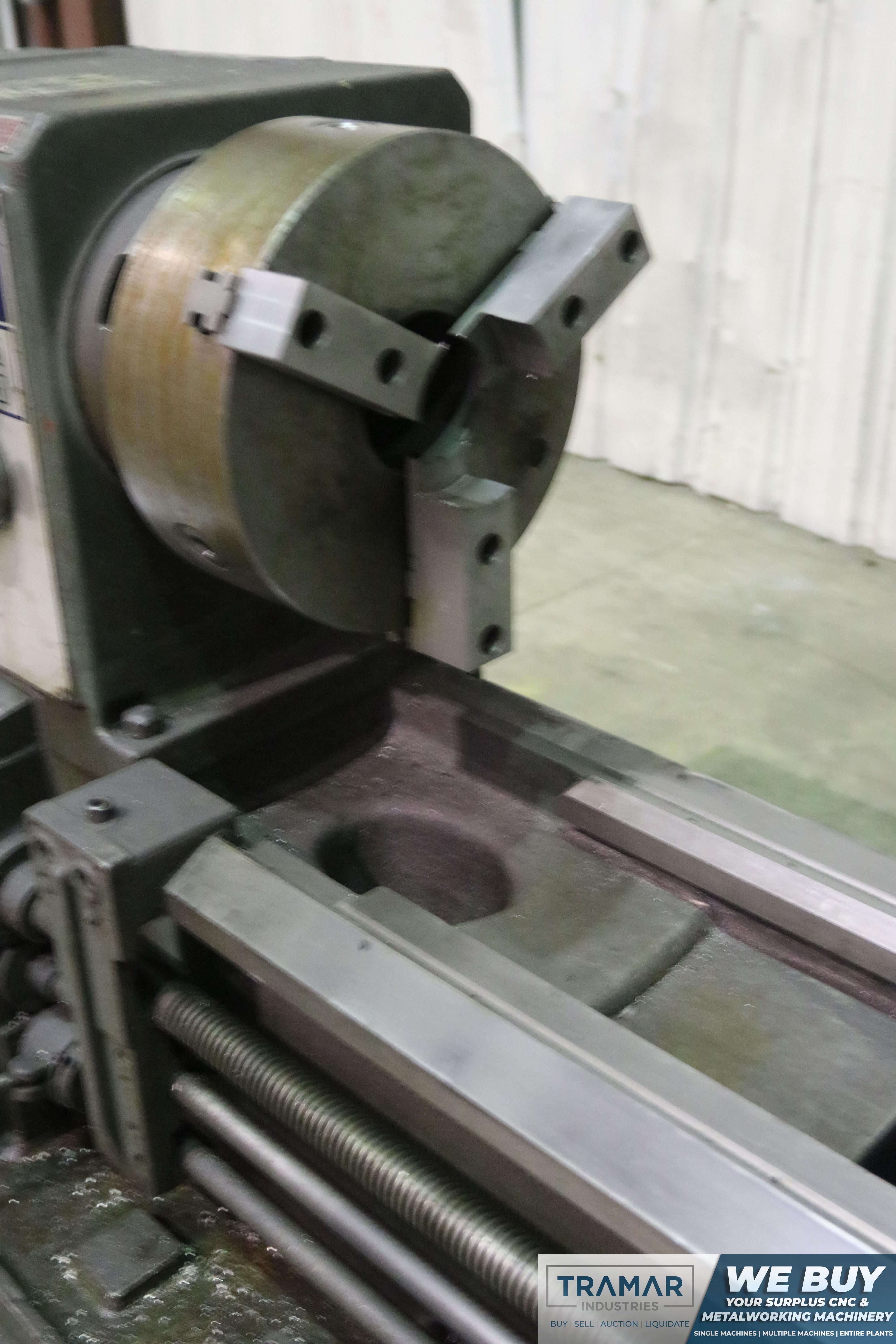

Chuck Size: 40"
Swing: 24"
Swing Over Cross Slide: 16.5"
Swing Over Gap: 31.5
Turning Diameter: 31"
Bar Capacity: 3.12"
Center Distance: 160"
Max Load Between Centers: TBD
Travel (X): 14.18"
Travel (Z): 160"
Speed Ranges: 12
Spindle Speed: 1,500 RPM
Spindle Motor: 10 HP
Live Tooling: No
Sub Spindle: No
Y Axis: No
Turret Stations: 8
Machine Dimensions: 242" x 50" x 65"
Equipped With

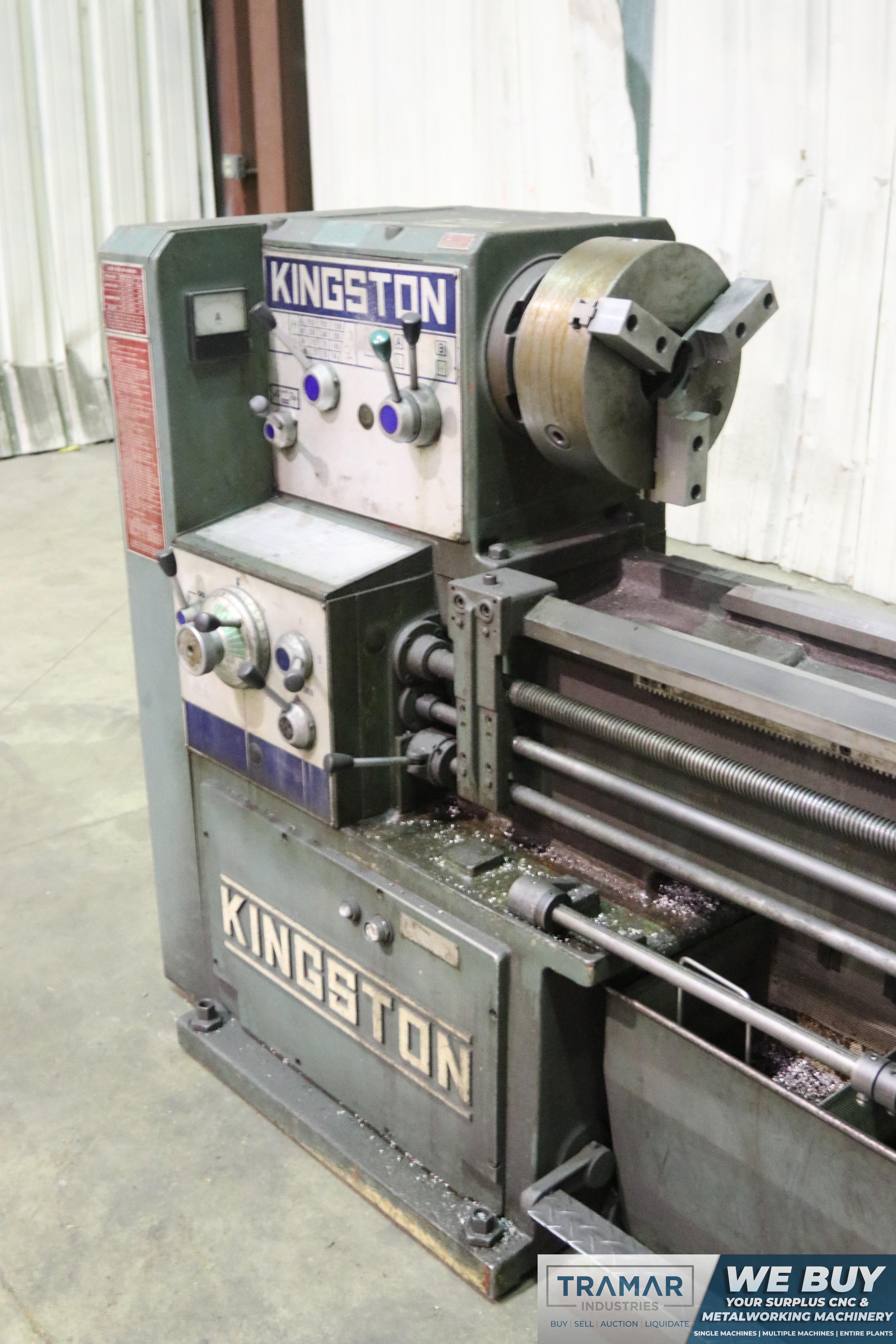

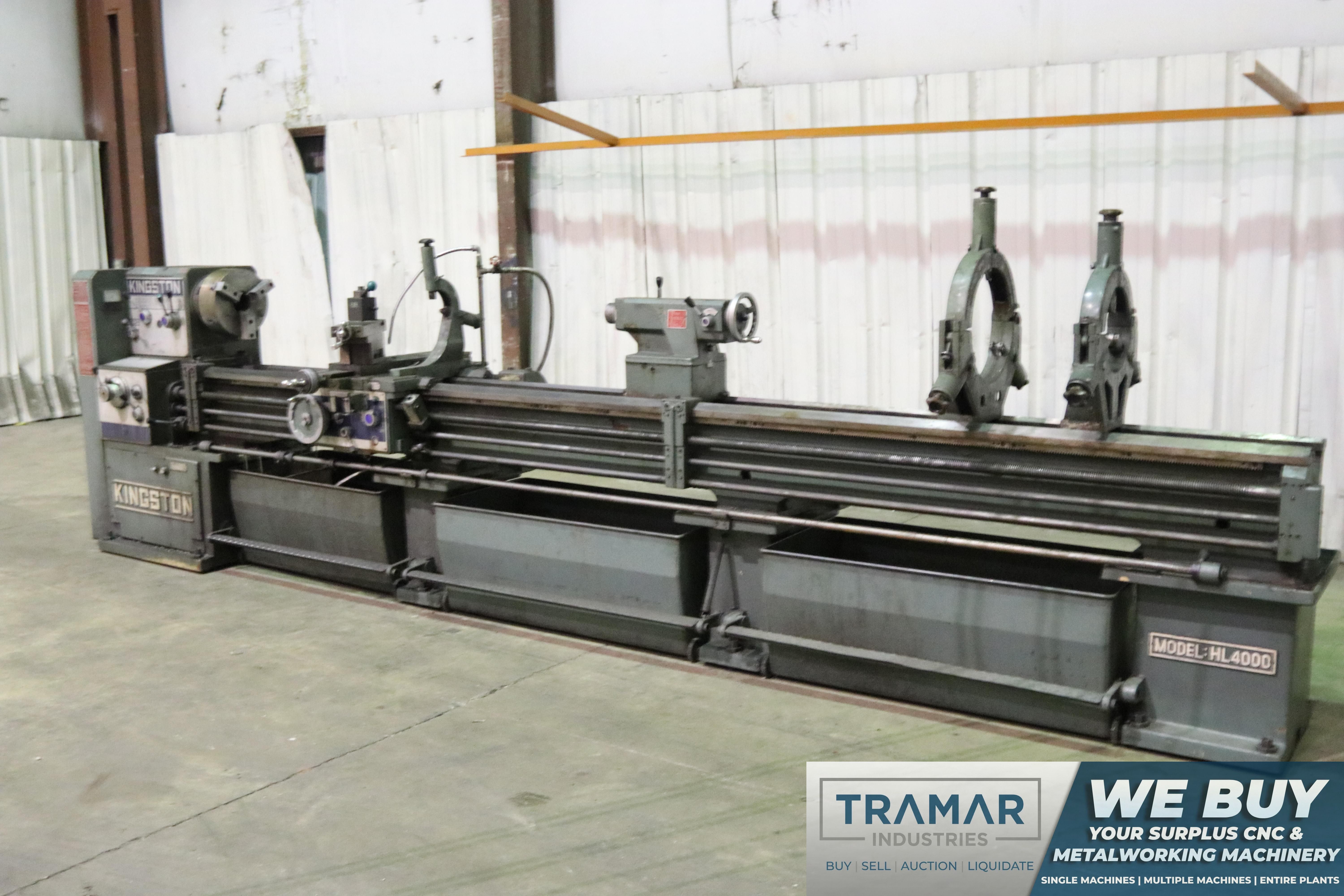

- MODEL HL4000
- SWING 24"
- SWING OVER CROSS 16.5"
- SWING IN GAP 31.5"
- CENTERS 160"
- SPINDLE BORE 3.12"

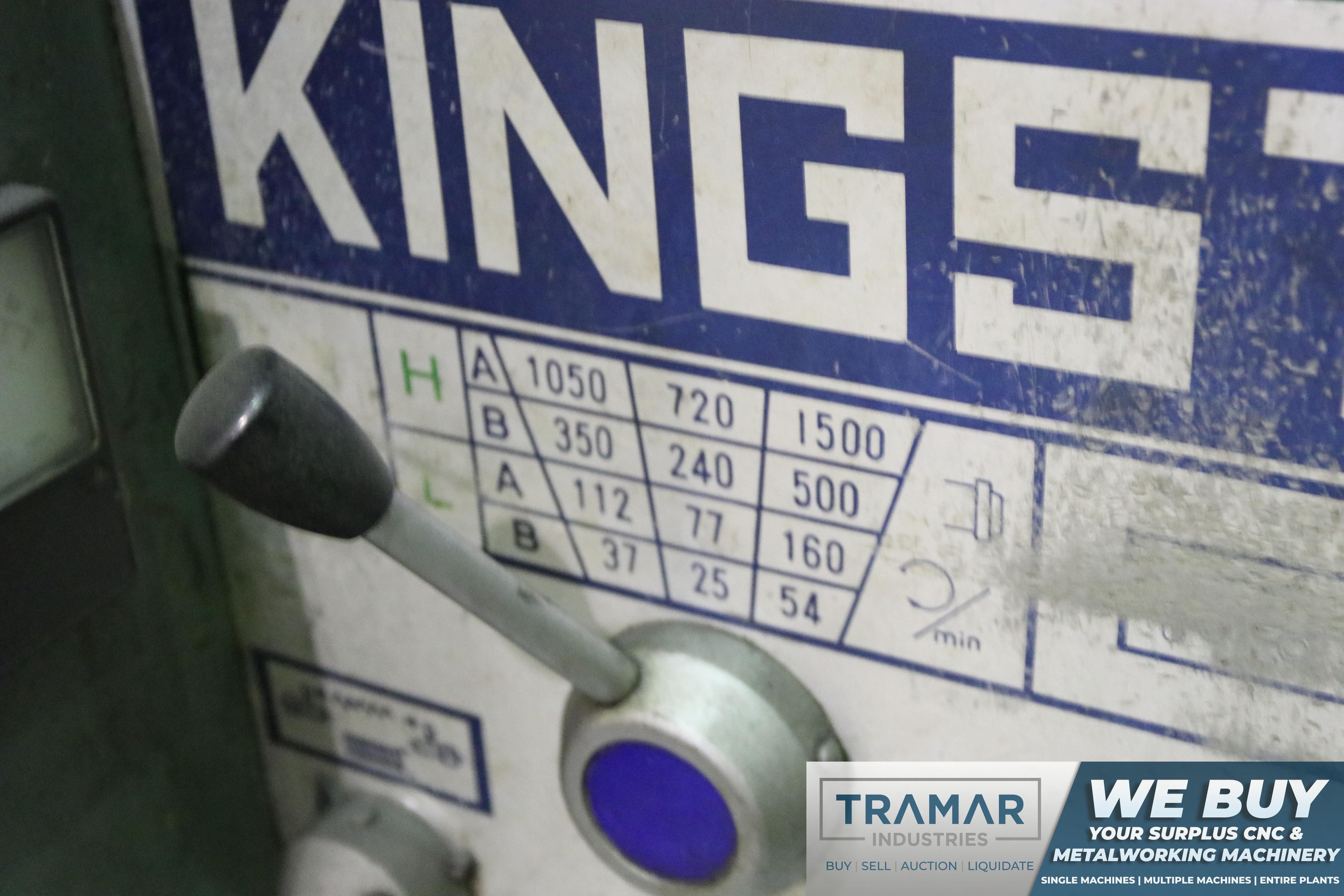

- SPINDLE SPEEDS (12) 25 TO 1500 RPM
- FEEDS (76) 0.003 - 0.00424 IPR
- THREADS (40) 4 TO 56 TPI
- METRIC THREADS (20) .5 TO 7 MM

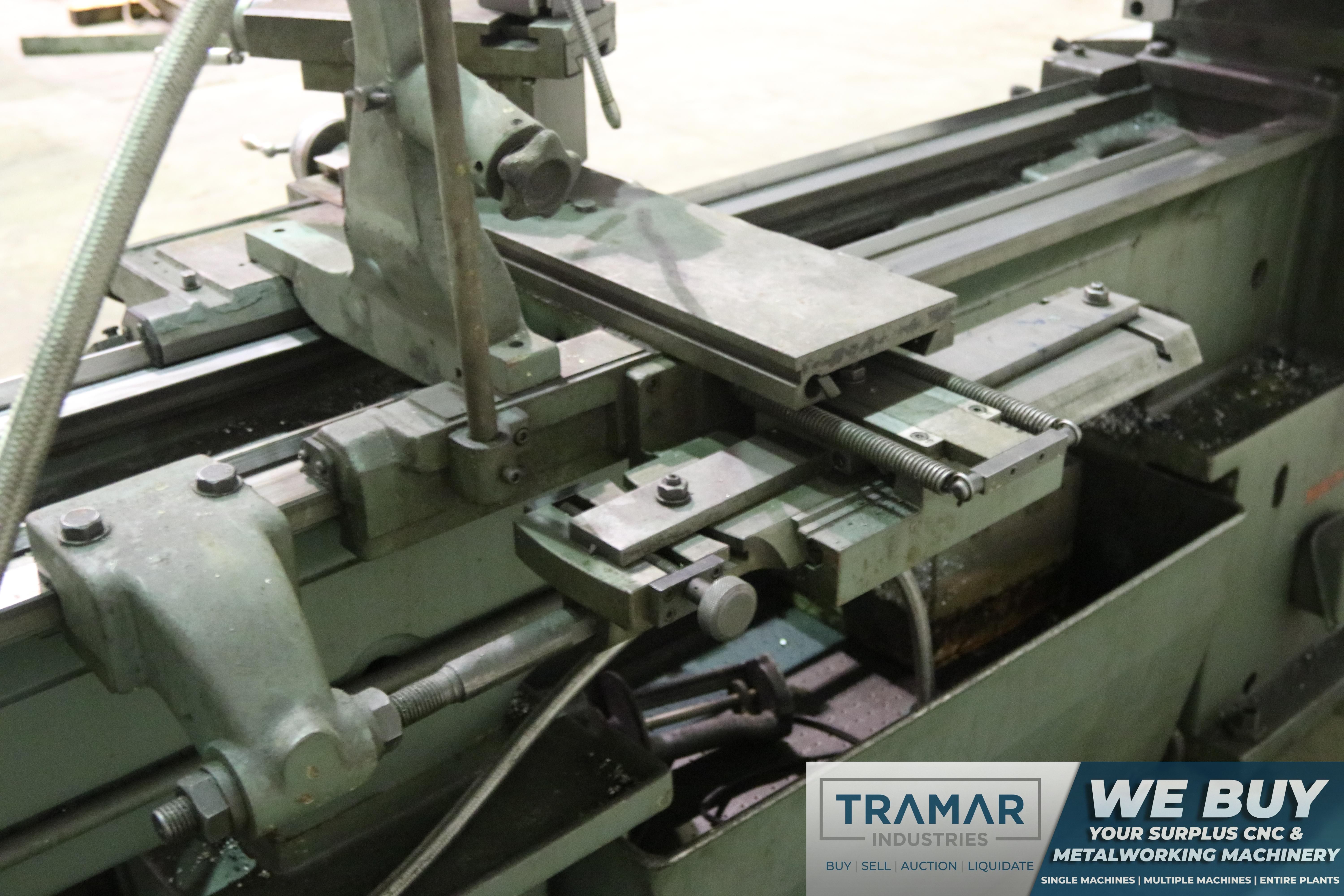

- CROSS SLIDE TRAVEL 14.18"
- MAIN MOTOR 10 HP
